Milling Machines
Showing all 9 results
-

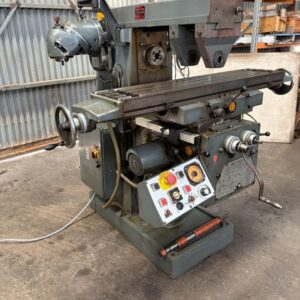

Universal Mill (2855)
Pacific FU-125 Universal Mill 40NT spindles, table 1250mm x280mm, travels (X-850mm, Y-290mm, Z-470mm), feeds and rapids to all. Spindle speeds 35-1800rpm. 3 axis DRO, arbour and 2 x arbour supports, some tooling. The job being machined is the gearbox housing of a 1912 Armstrong Whitworth Automobile which required welding and re-machining.
$11,500 Price (inc GST): $12,650
-

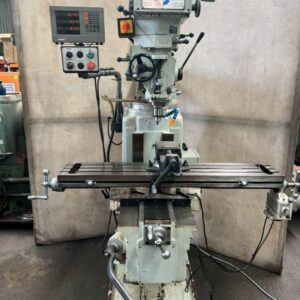

Mill Drill (2773)
Arboga Maskina type A2508U milling machine 3mt spindle, speeds 100-2775rpm (8 off), manual fine feed to quill. .9/.65kw 415volt. Table 250mm x 560mm, coolant, new vice, collet set and drill chuck. 2 axis DRO (one axis not working). Ex Govt.
$4,500 Price (inc GST): $4,950
-

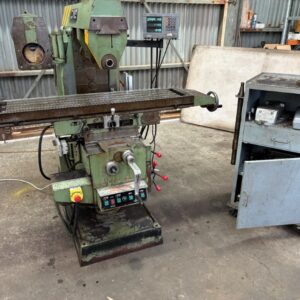

Universal Milling Machine (2756)
Universal CME FU-1, table 1100 mm x 240 mm, travels X - 750 mm, Y - 240 mm, Z - 420 mm, feeds & rapids, 40 int spindle, speeds 45-1800 rpm (9 off). Vertical head, universal head, slotting head, dividing head with tail stock, vice, arbour supports & arbour. Operator's manual. 4 HP motor, 415 volt. Machine weight 1400 kgs Ex Govt
$10,000 Price (inc GST): $11,000
-
Universal Ram Head Milling Machine (2819)
Pacific FCM-1400 ram head milling machine. 50 int spindles, 400mm x 1400mm swivel table, travels X-950mm, Y-330mm, Z-465mm, Overarm - 550mm. Feeds and rapids to X, Y, X, Z & overarm. Spindle speeds 28-1400rpm horizontal and vertical. Motors 6hp horizontal and 7.5hp vertical. Vice and operators manual. Ex Govt, machine weight 3500kg.
$22,000 Price (inc GST): $24,200
-
Universal Ram Head Milling Machine (2818)
Jarbe F4-CM Universal Ram Head Milling Machine 50 NT spindles, 450mm x 1900mm swivel table, travels X-1400mm, Y-300mm, Z-500mm, Ram - 700mm. Power feed and rapids to X, Y, Z axis. Speeds vertical 31-1400rpm, horizontal 28-1400rpm. 3 axis DRO, 10hp motors 415volt, vice. Machine weight approx 4500kg
$25,000 Price (inc GST): $27,500
-
Head Resurfacing Mill (2762)
Scledum SP1000 Head Resurfacing Mill (made in Italy) approx 1200mm travel, 350mm dia cutter head, 1.5kw 415volt. Variable speed feed 20-240mm/min with rapid on return. Comes with some spare cutters.
$6,500 Price (inc GST): $7,150
-

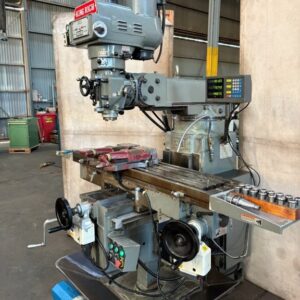

New Turret Milling Machine (M599D)
Metalmaster BM-63VE, NT40 spindle, 50-3550 rpm varibale, table 1370 mm x 254 mm, travels 810 mm (x), 400 mm (y), 400 mm (z), 3 axis DRO.
-
New Turret Milling Machine (M630D)
Metalmaster BM-70VE, NT40 spindle, 70-4200 rpm via inverter, 5hp main motor, table 1500 mm x 305 mm, travels 1050 mm (x), 420 mm (y), 500 mm (z), 3 axis DRO, Pneumatic draw bar.
-
New Turret Milling Machine (M597D)
Metalmaster BM-53VE, NT40 spindle, 50-3550 rpm variable,1370 mm x 254 mm table, travels 910 mm (x), 400 mm (y), 415 mm (z), DRO.
